Ultra-Premium Narrow-Bezel LCD Display Modules for Laptops: An Industry Benchmark of Precision Craftsmanship & Flagship Performance

K&D Technology’s narrow-bezel LCD display modules set the flagship benchmark for premium laptop displays via cutting-edge material innovations and ultra-precise manufacturing processes. Delivering revolutionary visual experiences and structural breakthroughs for ultraportable and high-performance notebooks, our modules serve as the core preferred solution for the high-end transformation of the laptop industry.

Ultra-Slim Design Pushing Structural Limits

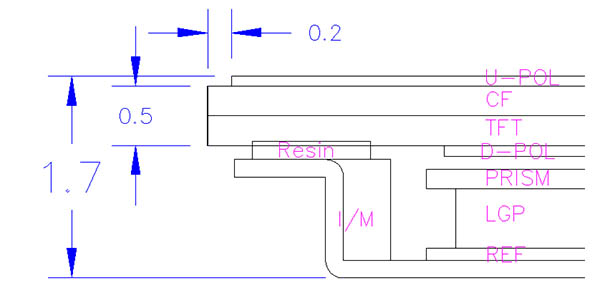

Engineered with an ultra-thin lightweight philosophy, this product adopts ground-breaking 0.25mm single-layer ultra-thin liquid crystal glass, paired with customized ultra-thin polarizers, integrated backlight iron frame structures, high-efficiency silver reflectors and single-layer composite films. Through material streamlining and structural optimization, we achieve an industry-leading module thickness of merely 1.75mm, perfectly catering to the demand for ultra-slim laptop designs while balancing lightweight build and structural robustness.

Core Process Specifications：

• Ultra-thin glass: 0.25mm

• Module total thickness: 1.75mm

• Laser processing tolerance: ±50μm




Ultra-High Screen-to-Body Ratio for Borderless Immersion

In terms of screen occupancy and display clarity, the module integrates industry-leading polarizer laser processing with precise machining tolerance controlled within ±50μm. This drastically narrows the gap between the Active Area (AA) and bezels, delivering an ultra-high screen-to-body ratio of 95% for immersive borderless visuals. It supports a maximum 120Hz high refresh rate to eliminate motion blur and deliver instant response, fully meeting the high-performance demands of premium laptops across office, entertainment and creative workflows.

Display Performance Specifications：

• Screen-to-body ratio: 95%

• Max refresh rate: 120Hz

• Laser processing tolerance: ±50μm

High-Precision Special-Shaped Grinding for Custom Structural Compatibility

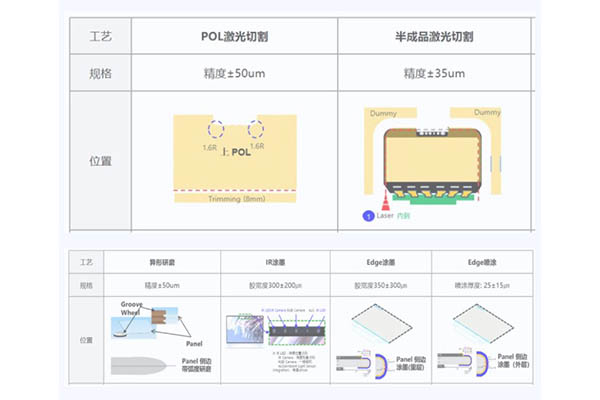

To accommodate premium display and structural integration requirements of complete devices, the four corners of liquid crystal glass undergo high-precision special-shaped grinding with a minimum tolerance of ±50μm, enabling seamless curved spline contour matching with laptop chassis. Precisely positioned IR sensor cutouts and LED holes are reserved on the top of the LCD, alongside a 3μm ultra-thin ink printing process that delivers ≥81% transmittance at a 940nm infrared wavelength, balancing outstanding optical performance and structural functionality.

Post FOB processing, side Potting Ink coating is applied with a coating thickness of only 25μm. Every unit undergoes full AOI inspection to guarantee consistent display quality and uniform craftsmanship.

High-Precision Dispensing for Ultra-Narrow Bezel Sealing

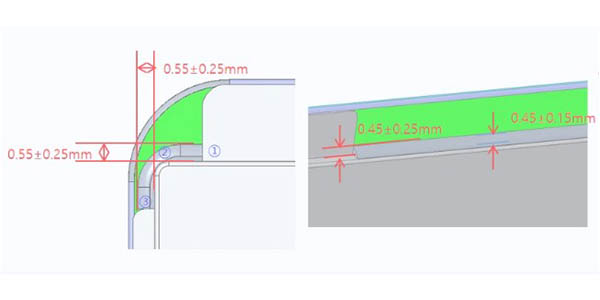

During backlight assembly, high-precision resin dispensing technology is deployed with a minimum dispensing width of just 0.7mm to further shrink bezel dimensions and amplify narrow-bezel advantages. AOI inspection continuously monitors glue layer thickness throughout production to ensure airtight sealing reliability. After full module forming, secondary resin dispensing reinforcement is applied on the rear side to mitigate external interferences from multiple dimensions, sustaining stable display performance and extending product service life.

Dispensing Process Specifications：

• Minimum dispensing width: 0.7mm

• Glue width control tolerance: 0.55mm

• Full AOI quality inspection

Integrated Cutting-Edge Technologies Driving Industrial Upgrade

Boasting innovations spanning advanced materials, refined manufacturing, ultra-slim form factors, ultra-high screen occupancy, premium optical performance and robust sealing, our narrow-bezel modules integrate the industry’s most forward-looking technologies. They fully satisfy the stringent requirements of premium laptops for visual quality, slim design, performance and reliability, making them the ideal display solution for ultra-high-end notebooks and propelling the industry into a new era of technological advancement.

As the next wave of upgrades unfolds for ultraportable and high-performance laptops, K&D Technology will remain R&D-driven. We will continue to deepen our expertise in narrow-bezel processing, ultra-thin material innovation and high-grade optical performance, adhering to stricter quality standards and delivering more transformative technological breakthroughs. We will keep supplying benchmark display solutions to the industry and collaborate with partners to advance the laptop display sector toward higher-end standards.
